AI Developing LLM Applications with LangChain

Stand8’s North Star Goal

Stand8 Technology Consulting set out to build an advanced AI model for its media client that could act as both a creative engine and a strategic intelligence layer across the content lifecycle. The model was designed to ingest and synthesize diverse data sources, including:

• Structured production data from multiple internal systems (budgets, historical performance, contracts, distribution metrics)

• Live third-party data from popular APIs (box office trends, streaming performance, audience analytics)

• Real-time social media feeds to capture sentiment, cultural momentum, and emerging trends

• Unstructured data such as PDFs, interviews, customer recordings, script drafts, blog posts, and critic reviews
  ‍

By combining these inputs, the system would generate movie screenplay concepts, develop story arcs and character profiles, suggest casting aligned with audience demand, and even shape marketing positioning.

‍

Beyond creativity, the model was intended to deliver real-time analytical intelligence. It would dynamically:

• Predict production budgets and financing needs

• Simulate ROI and revenue scenarios

• Evaluate tax incentives and funding opportunities

• Assess location feasibility based on cost, logistics, and regulatory factors



Crucially, the solution was designed to support iterative prompting and constraint-based reasoning, enabling stakeholders to refine outputs step by step — for example, introducing budget caps, preferred actors, genre restrictions, or regional considerations — while allowing the model to build progressively on prior results. Rather than producing isolated answers, the AI would function as a continuously evolving, context-aware decision-support and creative ideation system.

‍

The Problem

Stand8 Technology Consulting’s media client had a RAG application built on top of Snowflake, but it operated on limited, siloed datasets and primarily structured tables. The front-end interface could answer basic, statistics-driven questions based on available Snowflake data, yet it lacked the intelligence and orchestration layer required to combine proprietary internal data with live external APIs, third-party feeds, and unstructured sources such as PDFs, transcripts, and social content. As a result, the system could not generate forward-looking, creative outputs like screenplay drafts, casting concepts, financial projections, or location feasibility analysis. Instead, decision-making still depended heavily on multiple cross-functional meetings, manual analysis, and static reporting, which slowed innovation and reduced agility.

‍

Beyond data silos, the architecture faced several common challenges: fragmented data pipelines with inconsistent schemas, no real-time ingestion capability, limited support for multimodal and unstructured data processing, and no mechanism for iterative prompting or constraint-based reasoning. There was also a lack of contextual memory across sessions, preventing the system from building on previous outputs or refining ideas over time. Governance and access controls were rigid, making it difficult to securely integrate third-party sources. Performance bottlenecks, high query costs, and latency issues further constrained scalability. Most critically, the solution functioned as a retrieval interface rather than an intelligent agent  it could surface information but could not reason across datasets, simulate scenarios, forecast financial outcomes, or dynamically adapt to changing market and audience trends.

‍

Evolution of Client’s stack with Analyze Agency (solution)

The transformation of the client's technology stack led by Analyze Agency represented a paradigm shift from a limited retrieval system to an intelligent orchestration engine. Previously, the client had utilized a basic Retrieval-Augmented Generation application built on top of siloed, structured tables within Snowflake. The front-end interface could only answer basic statistical questions based on available data, completely lacking the intelligence required to combine proprietary internal data with live external APIs and unstructured sources. This static approach prevented the generation of forward-looking creative outputs and required decision-making to depend heavily on multiple cross-functional meetings and manual analysis.

‍

By implementing a multi-agent framework, Analyze Agency transformed the system into a continuously evolving, context-aware decision-support and creative ideation engine. Once deployed, it dynamically ingested structured production data, live third-party APIs capturing box office trends, real-time social media feeds, and unstructured data like PDFs, transcripts, and customer recordings.

‍

With this comprehensive data ingestion, the platform provided stakeholders with a massive variety of strategic assets. It successfully generated complete movie screenplay concepts, developed detailed story arcs, and suggested casting choices perfectly aligned with current audience demand. Furthermore, it delivered real-time analytical intelligence capable of predicting production budgets and simulating diverse returns on investment scenarios. Ultimately, it outputted a finalized greenlight package that told the internal creative team exactly what stories to choose, what cast to deploy, and the optimal locations and budgets to target.

‍

Architecture

The revised architecture we built was entirely driven by the LangChain Main Orchestrator (which delegated tasks & controlled flow), acting as the central brain to trigger workflows and manage multiple specialized agents. We utilized the powerful gpt-4o model to drive the core reasoning, synthesis, and iterative prompting capabilities required by the client.

‍

A key architectural decision was to build heavily on native AWS tools to ensure seamless data pipelines. Because the organization was heavily reliant on AWS and quite frankly happy with their offerings. However, the client was not reluctant to bring in Neo4j and Pinecone as they were best in their own categories.

‍

We divided the architecture into three core operational areas:

• Deep Intelligence Pipeline: This pipeline handles background data processing. Unstructured text sources  were vectorized using OpenAI's text-embedding-3 model. These embeddings populated a Pinecone Vector Database, which was queried by the Vector Agent (for deep context). Concurrently, AWS Glue populated a Neo4j Graph Database, which was navigated by the Graph Agent (to query talent links).

• Real-Time Operations: To capture the current market, the API Agent (querying public stats) fetched live statistics from market APIs, while the Social Agent (querying live chatter) gathered live trend data from social platforms. The Internal Agent (querying financials) specifically interfaced with the remaining structured data to fetch clean ROI metrics.

• Synthesis & Approval: All distinct agents sent their specialized insights back to the Master Agent (which synthesized the final pitch). We incorporated Agent Memory (to store past choices) so the AI remembered previous decisions and stakeholder preferences. Finally, a Human in the Loop (acting as an approval checkpoint) reviewed the draft, either requesting revisions or approving the final Greenlight Package.

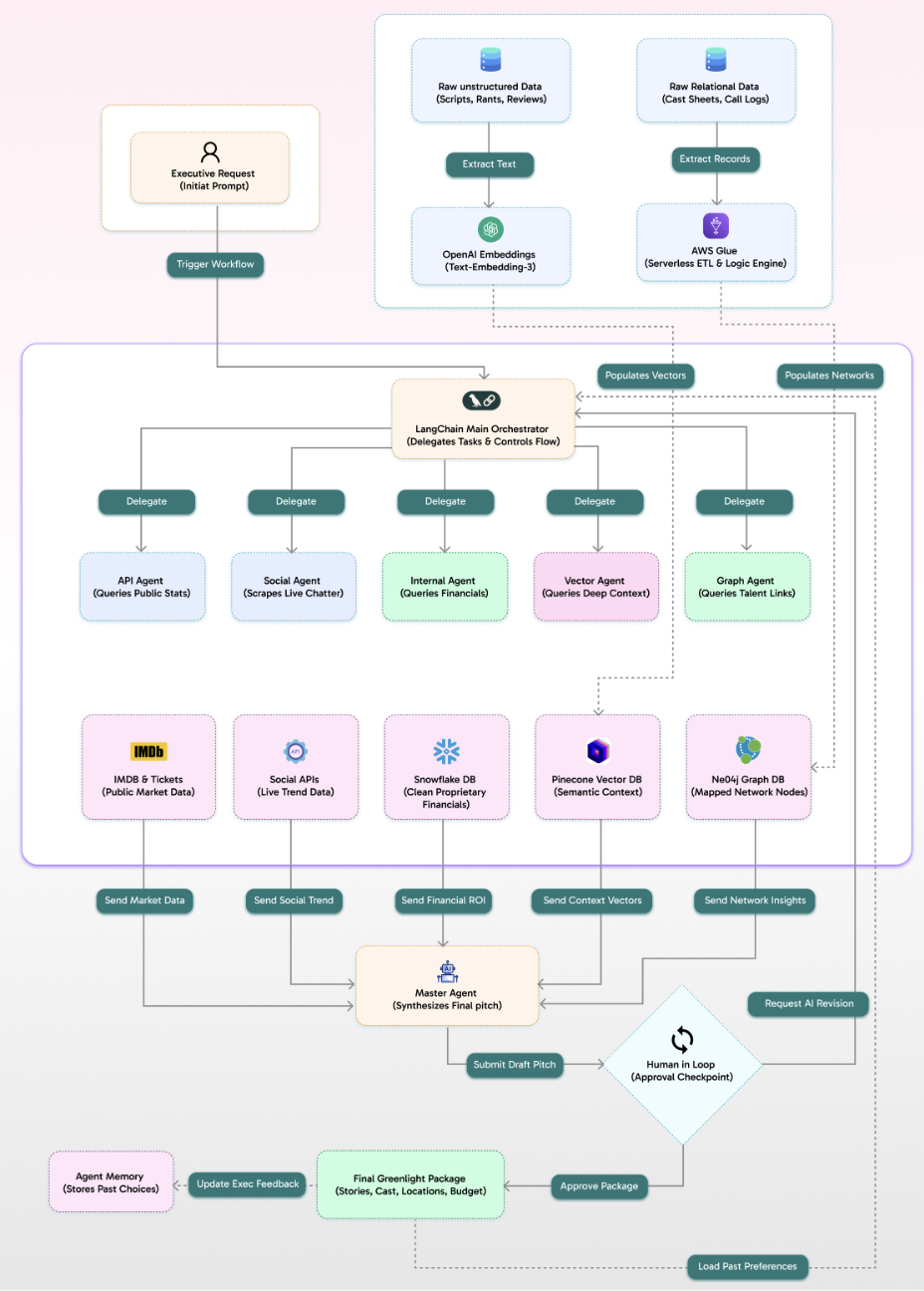

Below is the logical flowchart reflecting clear agent responsibilities with minimized overlap for better visual clarity:

Implementation

Because the client was already utilizing AWS, the entire solution was implemented natively within the AWS ecosystem.

• Infrastructure:  All AWS resources were hosted in us-east-1 because it was closer to client. We leveraged AWS’s EC2 instances, Lambda, S3, and complex step functions  to ensure scalability and secure integration with the client’s existing virtual private clouds. Neo4j, Snowflake and Pinecone were fully managed by the providers themselves. All modules were individually Dockerized and orchestrated using Kubernetes.

• Challenges: A primary challenge was managing the rate limits of external third-party feeds and APIs. We implemented asynchronous queuing and exponential backoff strategies to prevent throttling. Additionally, keeping the latency low while the Master Agent consolidated insights from the Neo4j database and live streaming performance required aggressive query optimization and caching mechanisms. Customizing Neo4j to handle media related queries was also challenging as the data was not collected to be stored in a Graph database. We had to enrich and transform the data in order to make the best use of Neo4j.

• Team Composition: This best-in-class implementation required a cross-functional team of 9 professionals. The team consisted of 2 Data Engineers to build pipelines from Snowflake, 3 AI/ML Engineers focusing on LangChain orchestration, 1 AWS Solutions Architect, 1 Neo4j Database Administrator, 1 Quality Assurance Tester, and 1 Technical Project Manager.

‍

Evaluation of the Model

To ensure the model functioned as a reliable enterprise tool rather than a novelty, we established rigorous evaluation protocols using industry-standard frameworks for Large Language Model applications.

• Technical & Contextual Evaluation: We utilized the RAGAS (Retrieval Augmented Generation Assessment) framework to quantitatively measure the "RAG Triad": Context Relevance, Groundedness, and Answer Relevance. By evaluating the Vector Agent's retrievals from the Pinecone database against the unstructured text, we ensured the context provided to the gpt-4o model was highly relevant and free of noise. To measure Groundedness, we employed an "LLM-as-a-Judge" pipeline. A secondary, isolated evaluation model automatically audited the Master Agent's finalized pitches to detect hallucination rates, ensuring every financial projection or casting suggestion could be traced directly back to the Neo4j graph or the live APIs.

• Operational & Human Evaluation: Beyond statistical metrics, we tracked system performance using Mean Reciprocal Rank to measure the precision of semantic searches. Because the solution supports iterative prompting and constraint-based reasoning, we heavily tracked the approval rate at the Human-in-the-Loop checkpoint. By monitoring how often the human approver had to request an AI revision versus granting an immediate approval for the Greenlight Package, we established a clear baseline for the model's practical utility. Feedback loops from rejected drafts were continuously fed back into the Agent Memory to automatically refine the orchestrator's prompt templates over time.

‍

Future Priorities

The current implementation is just a minor piece in a major puzzle. While the multi-agent system is fully capable of working independently, it is fundamentally designed to integrate with larger plans that are going to be implemented in the future. This enterprise-wide interoperability is driven by its built-in REST API feature, which allows other internal tools to communicate with it seamlessly.

‍

To support this expanded vision and ensure the system can scale reliably, the technical plan must prioritize the following foundational pillars

• Robust API Management and Scaling: As more enterprise applications leverage the REST API feature, establishing an enterprise-grade API Gateway will be mandatory. This will manage heavy traffic, enforce strict authentication protocols, and provide necessary load balancing to prevent the core system from being bottlenecked by requests from other internal tools.

• Modular Agent Expansion: Future iterations will likely require new specialized components, such as a Legal Agent (evaluates contract compliance) or a Distribution Agent (analyzes streaming platform requirements). The architecture must maintain strict decoupling so the LangChain Main Orchestrator (delegates tasks & controls flow) can dynamically register new agents without disrupting foundational data fetchers like the Snowflake Agent (extracts raw organizational text).

• Advanced LLMOps Pipelines: As the Agent Memory (stores past choices) grows and becomes more complex, implementing continuous integration and deployment (CI/CD) for prompt templates will be crucial. Establishing an LLMOps framework will allow the engineering team to version-control the AI's reasoning logic, ensuring that updates to the underlying gpt-4o model do not degrade the contextual accuracy of the system.

• Zero-Trust Data Governance: Opening the orchestration engine to other internal tools via the REST API necessitates rigorous, granular access controls. We must ensure that downstream applications only receive the data they are authorized to view, safeguarding sensitive metrics handled by components like the Internal Agent (queries financials) and ensuring strict compliance with enterprise security policies.

‍
